How to Design an Efficient Heat Trace System: Key Parameters, Calculations, and Common Pitfalls

Designing an efficient and reliable heat trace system starts well before a single meter of cable is installed. Whether you're protecting pipelines from freezing or ensuring stable process temperatures, the design phase determines not only operational effectiveness but also long-term energy efficiency and maintenance costs. It's tempting to think of heat trace systems as plug-and-play solutions, but in practice, each system must be tailored to specific site conditions and technical demands. Misjudging a single parameter—like ambient temperature or insulation thickness—can lead to undersized heating or, worse, system failure.

The first step in design is a clear understanding of the heat loss from the pipe or tank to the surrounding environment. This heat loss must be precisely calculated using factors like pipe size, length, insulation type, ambient low temperatures, and wind exposure. Based on that, the required power output of the heating cables can be determined. Many manufacturers provide heat loss tables, but custom calculations using thermal formulas are often necessary for critical applications or non-standard installations. Selecting the correct output rating (e.g., watts per meter) is a fine balance—too low, and the system underperforms; too high, and you risk overheating or unnecessary energy waste.

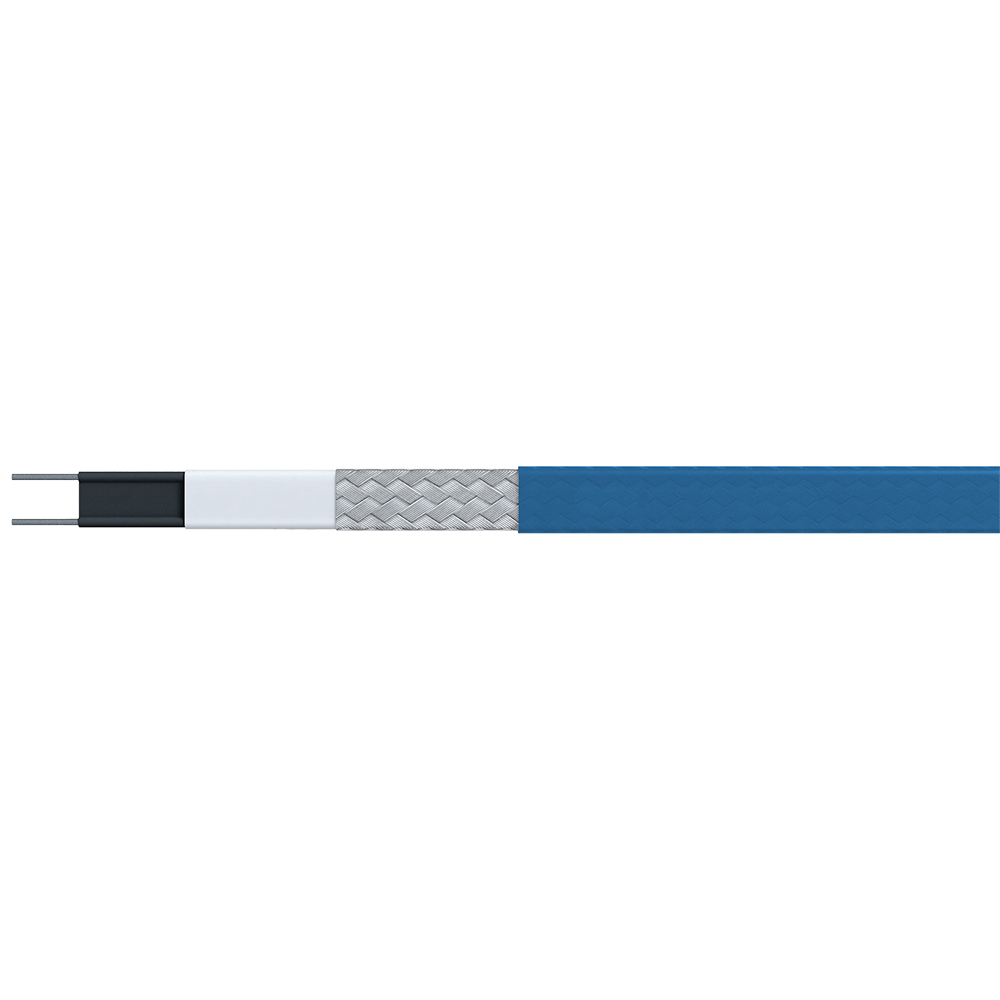

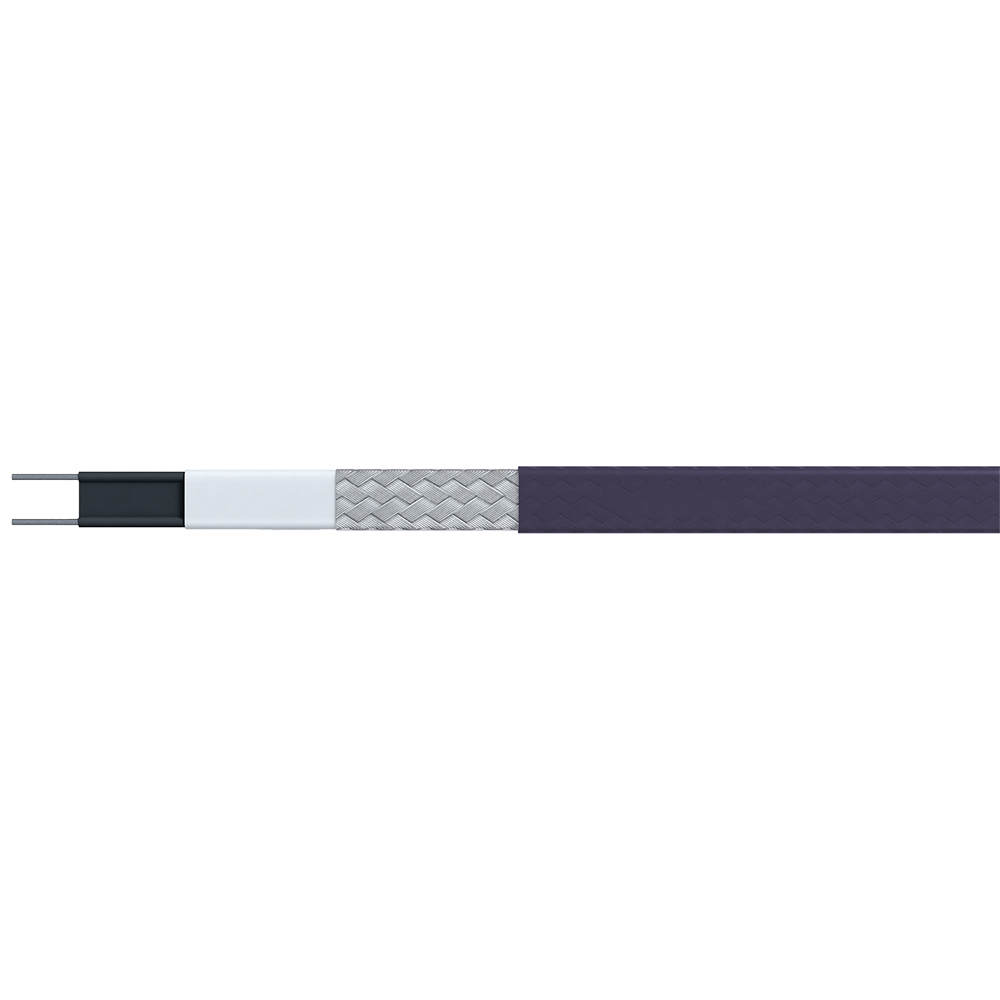

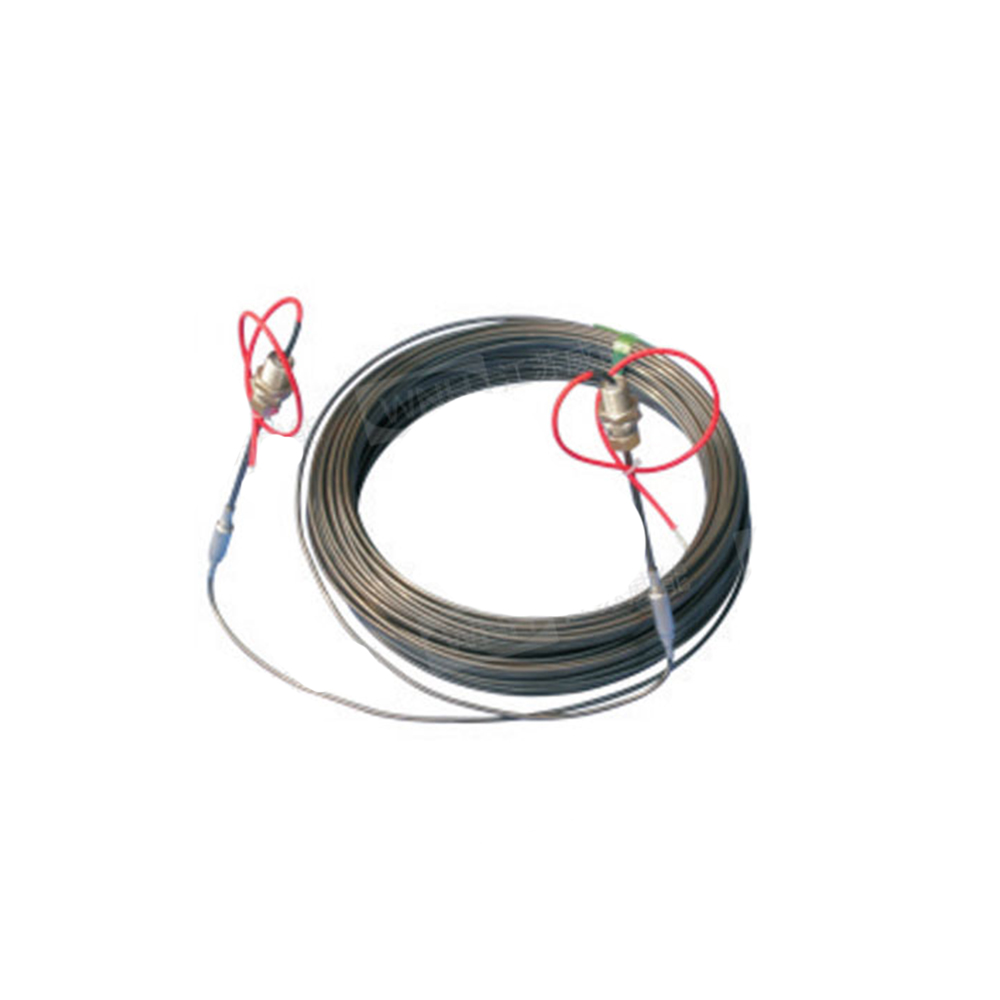

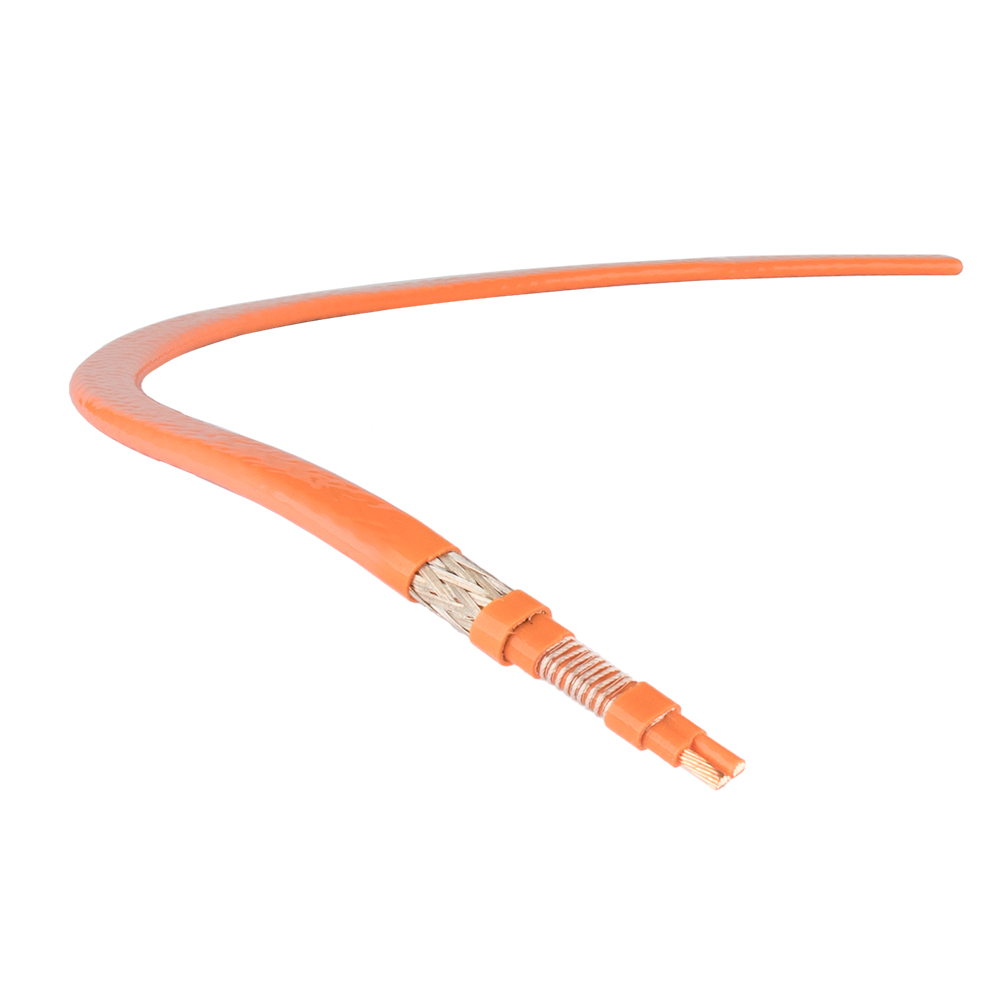

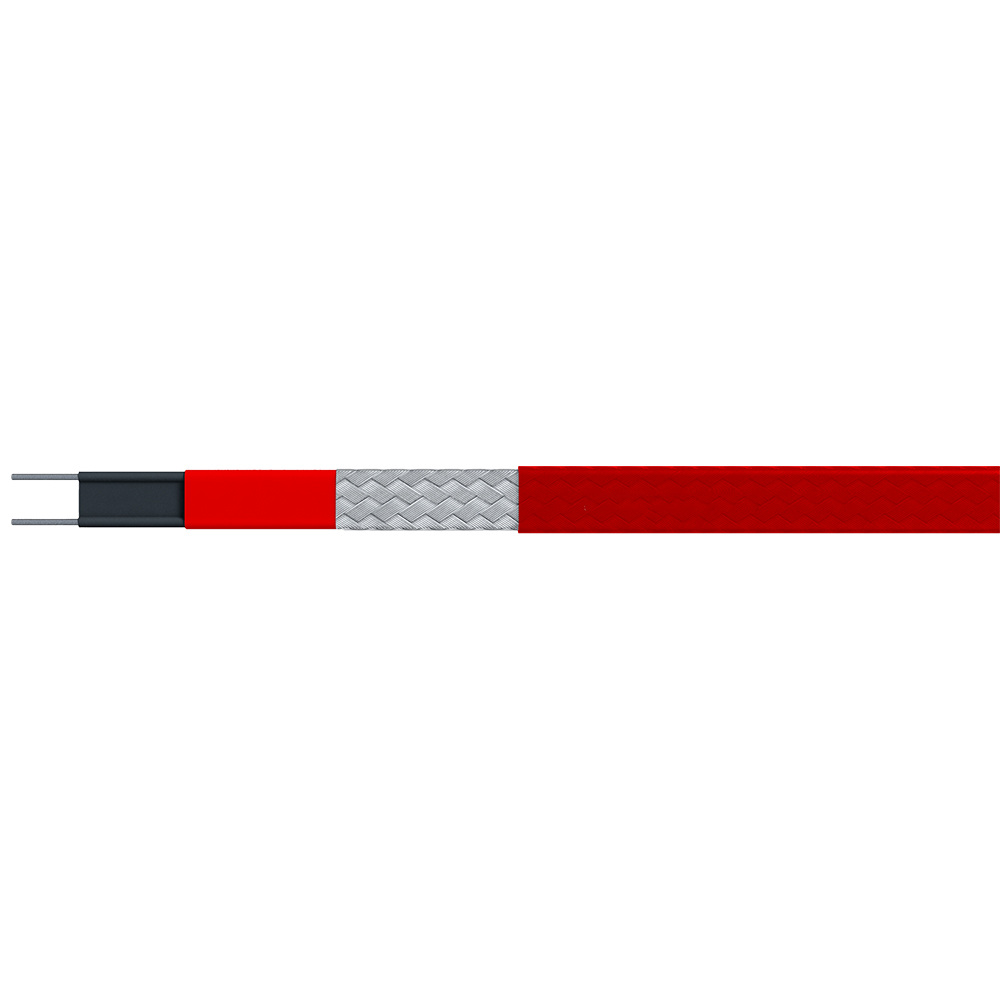

Once you know the heat loss, choosing the appropriate type of heating cable becomes the next priority. Self-regulating trace heaters are a common choice for freeze protection and moderate-temperature maintenance because of their ability to adjust output with temperature changes. In contrast, constant wattage cables provide uniform heat and are more suitable for process heating where stable power delivery is critical. For high-temperature applications or hazardous environments, mineral insulated cables offer unmatched durability but require more careful planning in terms of termination and bend radius.

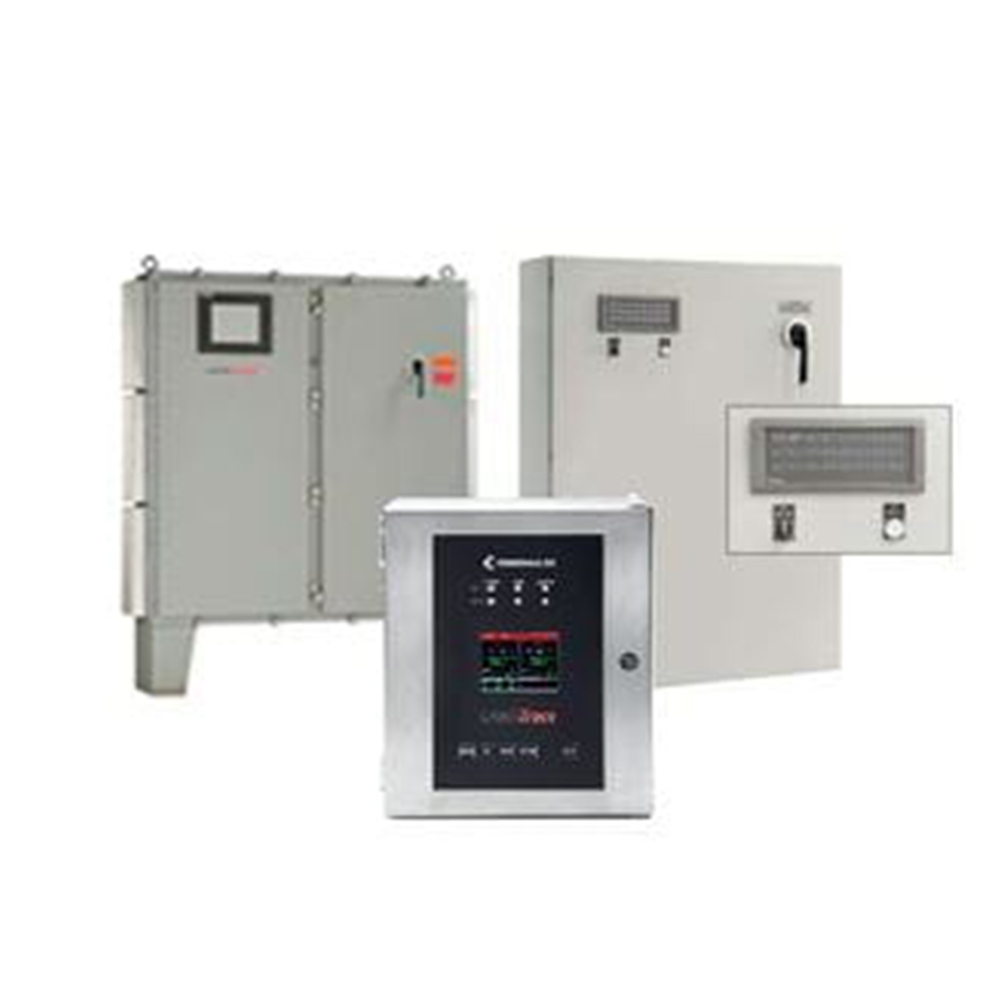

Control strategy is another essential design factor that is often underestimated. A basic thermostat may suffice for small, non-critical systems, but larger or process-sensitive installations benefit greatly from advanced control panels, sensor feedback, and even smart, IoT-enabled monitoring. These options not only enhance precision but also reduce operational costs by optimizing cable performance in real-time. Control systems are often overlooked during procurement, but they’re where much of the system’s efficiency can be gained—or lost.

A common pitfall in heat trace system design is underestimating the role of proper insulation. Even the most advanced heating cable can’t compensate for poorly installed or degraded insulation. It's also critical to account for pipe supports, valves, and flanges in the design, as these components can act as thermal bridges, requiring extra heating attention. These small design oversights often result in cold spots or require costly redesigns down the line, particularly in process facilities where thermal consistency is crucial.

Beyond the physical and thermal calculations, environmental and regulatory conditions also play a role. For example, heating cables installed in outdoor or hazardous environments must comply with specific certification standards like ATEX or IECEx. Additionally, moisture ingress protection, UV resistance, and chemical compatibility should be carefully evaluated based on the surrounding environment. This level of diligence not only ensures safety but also improves system longevity—something any experienced manufacturer will stress during the planning stages.

As a manufacturer deeply involved in industrial and commercial heat trace systems, we’ve seen firsthand how proper planning sets the foundation for long-term performance. From selecting the right trace heaters to configuring smart control systems, every detail matters. When done correctly, a well-designed system not only meets technical requirements but adds real value to your operation.
